济宁钻乾机械设备有限公司

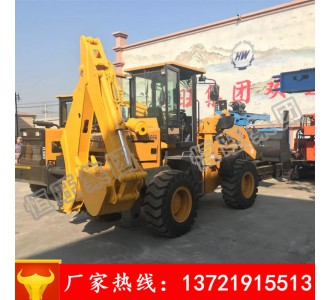

装载机越野装载机装载挖掘前挖后推两头忙型号齐全

产品品牌: 恒旺
最小起订: 1 台
产品价格: 1000.00元/台
供货总量: 100 台
发货期限: 自买家付款之日起 3 天内发货
浏览次数: 103
询价


  • 产品详细说明
  • 详细参数
 详细信息
轮式多功能液压搅拌机产品广泛适用于建筑工程、市政工程、公立、桥梁、城乡道路、预制厂、小型预制构件厂等工业及民用建筑工程施工部门搅拌干性混凝土、塑性混凝土、流动性混凝土

施工场所,特别适用于在狭窄的舱底建筑修建、维修,能大大提高工作效率。包装
属性Specifications 单位Unit 参数Parameter
实际搅拌量Actual stirring capacity m3 1.2
搅拌筒容量Rotary drum capacity m3 1.4
倾斜角Degree of bias ° 16
转动速度Rotational speed r/min 0-14
转动方向Direction of rotation 进料:顺时针出料:逆时针
Feed:clockwise output:counter clockwise
搅拌筒叶片Mixing drum blade 两组螺旋叶片及四组辅助叶片Two sets of spiral blades and four sets of auxiliary blades
混凝土坍落度Slump of concrete mm 70-260
液压传动系统Hydraulic Power Transmission System
油泵型号Pump model CBGV-4025
马达型号Hydraulic motor model BMSS-250
减速机速比Reducer ratio 01:10
供水系统Water Supply
水箱容量/供水形式Tank capacity/ water supply form L 540/自带式自动订时自动常通供水机构
540/ automatic timing water supply mechanism with automatic timing
底盘主要性能参数发动机主要性能参数The main performance parameters of the chassis and the main performance parameters of the engine
发动机型号/排量Engine type / displacement L CF4B68G-Z-13B2/CF4C100T-Z-13B2
形式model 直喷式四冲程水冷增压柴油机
Straight injection type four stroke water cooled supercharged diesel engine
额定功率Rated power kw/r/min 55KW/2400 78KW/2400
樶大扭矩Max torque N.m/r/min 255/1500-1800 380/1500-1800
樶大行驶速度Max running speed km/h 24
樶小转弯半径Min steering radius mm 5000
爬坡能力Climbing capacity % 26
轮胎Tire 23.5/70-16
驱动形式Driving way 4×4
整车装备质量Weight kg 4580
樶大装载质量Maximum load capacity kg 2800
樶大车辆总质量Whole machinery weight kg 7380
整车外形尺寸(长*宽*高)Overall size(L*W*H) mm 6100*1850*3000
